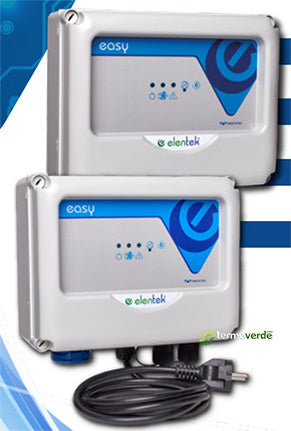

Elentek Easy-Mono - 1 Pump Control Panel

230V 18A - Elentek Easy-Mono - The most user-friendly control panel! - Direct start - SMART APP

-

EASY, the most user-friendly panel from Elentek. Easy control panel is self-programming by simply pressing a button. EASY creates a local wireless network to control and refine the parameters with your smartphone or tablet. Control and protect, just do it simply with EASY.

FUNCTIONS

• LEDs on front of panel for signalling operating status and alarms
• Pushbuttons: AUTOMATIC, 0 with MANUAL function
• Self-learning of electrical motor data
• Dry running protection by: level probes/floats/pressure switches
• Up to 2 control inputs: level probes/floats/pressure switches
• Manual button operation (fixed or momentary)
• Predisposition for run capacitors for single-phase version (not included)

ADDITIONAL FUNCTIONS WITH WI-FI CONNECTION

• Interface language selection: Italian/English/French/German/ Spanish
• Display of motor absorption, working hours and number of motor starts (resettable)
• Electronic control of minimum current (dry running)
• Automatic reset due to minimum current alarm with programmable times
• Selection of delay time for minimum/maximum current alarm activation at motor start
• Too many starts/hour setting and alarm
• Enabling of level alarm from probes

CONTROLS

• Electronic control of maximum current
• Electronic control of minimum current (dry running)
• Failure or incorrect phase sequence control on power supply input

ALARMS

• Alarms reported: voltage status, levels, motor overload, minimum motor current and high board temperature
• General alarm output contacts

PROTECTIONS

• Auxiliary and motor protection fuses
• Box ABS, IP55

-
