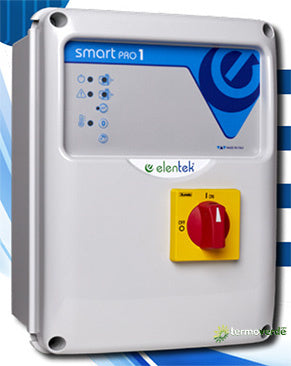

Elentek Smart PRO 1-Tri/15 - 1 Pump Control Panel

400V 32A - Elentek Smart PRO 1-Tri/15 - The evolution of Elentek’s best-seller control panel, suitable for both clean water and wastewater systems - Direct start - SMART APP

-

SMART PRO is the evolution of Elentek’s best-seller control panel, suitable for both clean water and wastewater systems. Thanks to the new expansion modules system and the connections, the panel can be used for a wide range of applications and increases the potential of the system.

Compact, very easy to install and program also by App, it facilitates the replacement of old and obsolete panels installed.

FUNCTIONS

• LEDs on front of panel for signaling operating status and alarms
• AUTOMATIC - 0 (standby) - MANUAL pushbuttons (fixed or pulse)
• Anti-seize autotest (can be disabled)
• Dry running protection with: level probes/ floats/ pressure switches
• Up to 4 control inputs: floats/pressure switches
• Clicson inputs with automatic reset (can be disabled)
• Inversion of inputs (from normally open to normally closed)
• Start/stop float switch function (can be disabled)
• Current protection delay
• Automatic reset from minimum current alarm (can be disabled)
• Delay time of motor enabling after power mains return
• Pushbutton for manual operation (fixed or pulse)
• Predisposition for run capacitors for single-phase version (not included)

ADDITIONAL FUNCTIONS SMART PRO 2

• Duty/standby (can be disabled)
• Immediate motor changeover in case of a fault

CONTROLS

• Electronic control of maximum current with assisted calibration
• Electronic control of minimum current (dry running) with assisted calibration
• Failure or incorrect phase sequence control on power supply input (can be disabled)

ALARMS

• Alarms reported: voltage status, levels, motor overload, minimum motor current, clicson motor
• General alarm output contacts

PROTECTIONS

• Auxiliary and motor protection fuses
• Isolator (except for NB code)
• Box in ABS, IP55

-

Manufacturer Instructions
