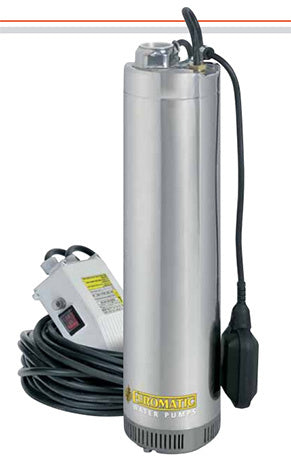

Euromatic SCX 605/S Submersible pump for wells

Multi-impeller submersible electric pump for wells - Speroni Euromatic SCX 605/S - 230V 1550W - Flow rate: l/m 140 - Head max.: H(m) 58

-

APPLICATIONS
Multistage centrifugal submersible electric pumps for pumping clean water without abrasive substances. Particularly suitable for irrigation systems, drinking water supply, washing, pressure increase in general. They can be used to make small, absolutely silent domestic pressurization units. High corrosion resistance thanks to the use of stainless steel for the pump body and the motor.


LIMITS OF USE
- Liquid temperature up to 35 ° C
- Immersion depth 20 m.
- Sand content 40 g / m3
- Departure / hour 45 max.

MOTOR
- Induction electric motor a
   2 poles (n = 2850 min-1)
- Reset current protection
   built-in automatic
- Class F insulation
- IP 68 protection

MATERIALS
- Pump body: Stainless steel
- Grid: Stainless steel
- Impeller and diffusers: Stainless steel
- Supports: Bronze
- Shaft: Stainless steel
- Motor body: Stainless steel
- Mechanical seal: Silicon / Silicon

-

Manufacturer Technical Data Sheet
