Elentek Pluvio Control Panel DROP 10 Electric Float

DROP 10 Electric float with variable trim with neoprene cable length 10 m for Elentek Pluvio control panel

DROP is a special level regulator, suitable for both industrial and civil use, it has been designed to optimize the level control of wastewater and sewage.

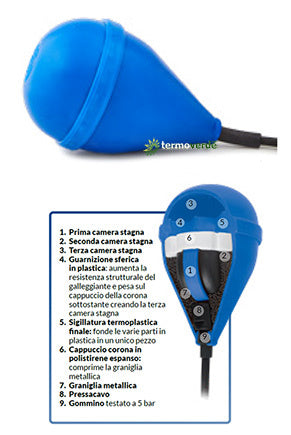

Built with three watertight chambers with variation of attitude, unlike traditional floats that remain on the surface of the water, Drop, thanks to its special construction with integrated counterweight, remains underwater.


• Float switch
• Cable type: 05VV-F 3x1 mm²
• Operating voltage: 230V / 50Hz
• Nominal voltage: 250 V
• Switching current (Max): 10 (8) A
• Cable connection with terminals without connectors

• Temperature (Min): 0 ° C
• Temperature (Max): 50 ° C
• Degree of protection: IP68
• Contact type: 1 exchange
• Material: plastic
• Cable: neoprene, IMQ certified
