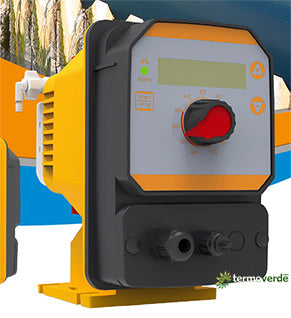

Injecta GEA R BL 2 Dosing pump

Electromagnetic dosing pump - Mechanical stroke lenght regulation - Injecta GEA R BL 2 - Manual adjustment through the front panel showing the percentage of frequency (P %) or the number of strokes (F) - 100÷240 Vac - Flow rate 4 l/h-8 l/h - PVDF KIT

-

ELECTROMAGNETIC DOSING PUMPS WITH MECHANICAL STROKE LENGTH REGULATION

Thanks to its modern conception, this pump combines reliability, dosing precision and easy
installation, representing a reference point in the base mounted metering pump sector.

DISPLAY AND KEYPAD
GEA R is programmable through a keypad. All settings are shown on the 2-line/8-digit backlit
display.

EXTERNAL SIGNAL CONNECTOR
The connector is protected by an IP65 cover.

DOSING MODE
The pump head, equipped with a low-level alarm, has a manual priming valve. The flow rate can be
adjusted either manually or automatically, in this latter case using input signals, within a range
between 0 (pump stop) and 100% of the maximum flow rate.

PUMP HEAD MATERIALS
• Body: PVDF
• Valves: Ceramic ball
• O-Ring: FPM/EPDM
• Diaphragm: PTFE

The parts coming into contact with the dosed liquid, have been designed to be compatible with
the mostly used chemical products.

TECHNICAL CHARACTERISTICS

Flow rate range: 2.5 to 18 l/h
Accuracy: ≤ 2,0%
Max Pressure: 16 bar (232 psi)
Manual priming valve
Manually adjustable stroke length
Stabilized Multi Power Supply 100 - 240 Vac, 50/60 Hz
Frequency: up to 300 strokes/minute
Pump head: PVDF with integrated antiseepage
system to prevent electric damages in case of
chemical leakage
Diaphragm: PTFE
Case: PP reinforced with fiber glass (protection degree
IP65)
Base mounting
Installation Kit included + wall mounting bracket

5 YEARS WARRANTY DIAPHRAGM

• Thanks to its advanced design and manufacturing process, Injecta diaphragm has an excellent service
life.
• The PTFE diaphragm is compatible with the mostly used chemical products.
• Operational costs can be reduced, thanks to a less frequent maintenance.

CONSTANT DOSING
GEA R Series is equipped with a Stabilized Multi Power Supply 100÷240 Vac, 50/60 Hz.
• The solenoid only absorbs the power required to activate the pump, based on the working conditions
• Improved pump efficiency is not affected by power supply fluctuations.

GEA-R BL MANUAL ADJUSTMENT WITH LEVEL CONTROL
Manual adjustment through the front panel showing the percentage of frequency (P%) or the number of strokes (F). Input for level probe included.

-
