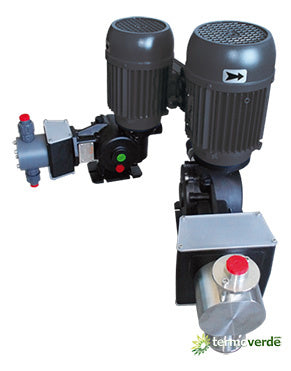

Injecta Taurus TP 15 011A Dosing pump 1~230V AISI 316L

Electromechanical dosing pump - Injecta Taurus TP15011A - Version with piston - 1~230V - 0.25 Kw - Flow rate 5.0 l/h - 20 bar - AISI 316L Head

-

GENERAL FEATURES:

• The mechanism of these pumps is of the eccentric and plate type with spring return, enclosed by an aluminum casing in an oil bath

• Pump regulation is manual as standard but it is possible to control it with a remote signal, by electric servo with a 4 ÷ 20 mA signal or inverter


STROKE 15mm
• Maximum flow rate 1,5 ÷ 304 lt / h
• Maximum pressure 20 bar
• Fixed frequency 58-116 strokes / min
• Piston diameter 6 ÷ 24 mm
• Motors 0.18 / 0.25 kW of unified type IP55

-
