Salupo Autotransformer 1 400-60 S Quadro elettrico 1 motore
Salupo Srl

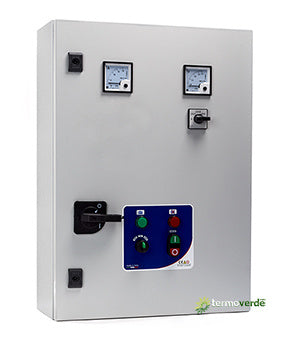

Salupo Autotransformer 1 400-60 S - 1 Pump Control Panel

In stock
No reviews
FREE SHIPPING
€3.313,79 EUR
Product details
  • Vendor Salupo Srl
  • SKU SQ705.10 - 26979 Salupo SQ705.10 Quadro AUTOTRAN

Share

Description

400V 50÷200A Siemens - Salupo Autotransformer 1 400-60 Electric panel for 1 motor with autotransformer starting type – Voltmeter and ammeter - Maximum current protection with alarm

-


GENERAL CHARACTERISTICS
  • Operating voltage 400Vac ±10% 50/60Hz
  • Main switch with door lock
  • Selector for automatic operation -0- manual
  • Start-stop button for manual operation
  • Adjustable autotransformer timer
  • Run LED indicator light
  • Overload LED indicator light
  • Analog voltmeter 72×72
  • Voltmetric switch
  • Analog ammeter 72×72
  • Auxiliary circuit protection fuse
  • Transformer for auxiliary circuit
  • Motor protection fuse
  • No. 3 contactors
  • Three-phase autotransformer with thermostat
  • Internally resettable thermal relay
  • Connection terminal block
  • External metal container
  • Degree of protection IP55
  • Operating temperature -5/+40°C

INPUTS/OUTPUTS
  • No. 2 very low voltage inputs for pressure switch or floats (minimum/maximum level)


PROTECTIONS
  • Maximum current protection with alarm











Mod.

Power

Current

Altezza, larghezza e profondità

Peso



V∼

KW

HP

AMPERE

A-H

L-W

P-D



Autotransformer 1 400-60

400

45

60

50÷200

1000

800

370

85





Salupo Autotransformer 1

-

Manufacturer Technical Data Sheet
