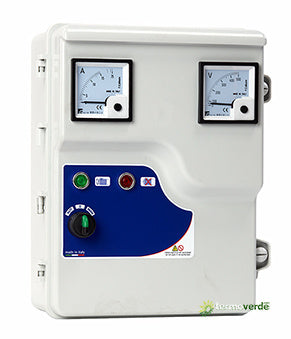

Salupo Direct 1 AV 230-2 Quadro elettrico 1 motore
Salupo Srl

Salupo Direct 1 AV 230-2 - 1 Pump Control Panel

In stock
No reviews
FREE SHIPPING
€152,96 EUR
Product details
  • Vendor Salupo Srl
  • SKU SA625.04L - 26549 Salupo SA625.04L Quadro DIRECT

Share

Description

230V 9÷14A Lovato - Salupo Direct AV 230-2 Direct start electrical panel 1 motor with voltmeter and ammeter - Maximum current protection with alarm

-


GENERAL CHARACTERISTICS
  • Operating voltage 230Vac ±10% 50/60Hz (SA625.xx)
  • Operating voltage 400Vac ±10% 50/60Hz (SA635.xx)
  • Selector for automatic operation -0- manual (stable)
  • Running indicator light
  • Overload indicator light
  • Analogue voltmeter 72x72
  • Analogue ammeter 72x72
  • Motor protection fuse
  • Contactor
  • Internally resettable thermal relay
  • Connection terminal block
  • External container in thermoplastic material
  • Cable glands
  • Degree of protection IP55
  • Operating temperature -5/+40°C


INPUTS/OUTPUTS
  • Input for pressure switch or float switch


PROTECTIONS
  • Maximum current protection with alarm











Mod.

Power

Current

Altezza, larghezza e profondità

Peso



V∼

KW

HP

AMPERE

A-H

L-W

P-D



Direct 1 AV 230-2

230

1.5

2

9÷14

285

245

140

2.6





Salupo Direct 1 AV

-

Manufacturer Instructions Technical Data Sheet
