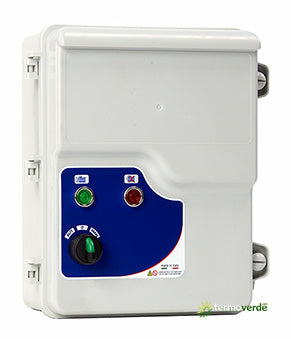

Salupo Direct 1 T 230-3 Quadro elettrico 1 motore
Salupo Srl

Salupo Direct 1 T 230-3 - 1 Pump Control Panel

In stock
No reviews
FREE SHIPPING
€150,40 EUR
Product details
  • Vendor Salupo Srl
  • SKU SA624.25L - 26534 Salupo SA624.25L Quadro DIRECT

Share

Description

230V 13÷18A Lovato - Salupo Direct 1 T 230-3 Direct start electrical panel 1 motor with transformer - Maximum current protection with alarm


GENERAL CHARACTERISTICS
  • Operating voltage 230Vac ±10% 50/60Hz (SA624.2x)
  • Operating voltage 400Vac ±10% 50/60Hz (SA634.2x)
  • Selector for automatic operation -0- manual (stable)
  • Running indicator light
  • Overload indicator light
  • Transformer for auxiliary circuit
  • Motor protection fuse
  • Contactor
  • Internally resettable thermal relay
  • Connection terminal block
  • External container in thermoplastic material
  • Cable glands
  • Degree of protection IP55
  • Operating temperature -5/+40°C


INPUTS/OUTPUTS
  • Very low voltage input for pressure switch or float switch


PROTECTIONS
  • Maximum current protection with alarm











Mod.

Power

Current

Altezza, larghezza e profondità

Peso



V∼

KW

HP

AMPERE

A-H

L-W

P-D



Direct 1 T 230-3

230

2.2

3

13÷18

285

245

140

3.3





Salupo Direct 1 T

Manufacturer Technical Data Sheet
