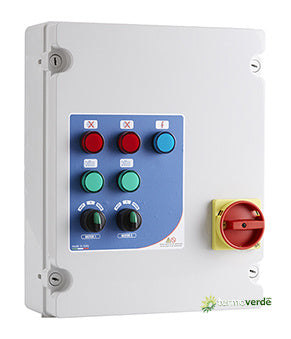

Salupo EVO 2 400-7.5 S Quadro elettrico 2 motori
Salupo Srl

Salupo EVO 2 400-7.5 S - 2 Pumps Control Panel

In stock
No reviews
FREE SHIPPING
€442,30 EUR
Product details
  • Vendor Salupo Srl
  • SKU SA661.10 - 26715 Salupo SA661.10 Quadro EVO 2 40

Share

Description

400V 2x(11÷16)A Siemens - Salupo EVO 2 400-7.5 Direct start electrical panel 2 motors - Maximum current protection for each motor with alarm

-


GENERAL CHARACTERISTICS
  • Operating voltage 230Vac ±10% 50/60Hz (SA651.xx)
  • Operating voltage 400Vac ±10% 50/60Hz (SA661.xx)
  • General disconnector with door lock
  • No. 2 selectors for automatic operation -0- manual (stable)
  • Mains presence LED indicator light
  • No. 2 running LED indicators
  • No. 2 overload LED indicators
  • Auxiliary circuit protection fuse
  • Auxiliary circuit transformer
  • Protection fuse for each motor
  • No. 2 contactors
  • No. 2 internally resettable thermal relays
  • Connection terminal block
  • External container in thermoplastic material
  • Cable glands
  • Degree of protection IP65
  • Operating temperature -5/+40°C


INPUTS/OUTPUTS
  • No. 2 very low voltage inputs for pressure switch or floats (minimum/maximum level motor 1)
  • No. 2 very low voltage inputs for pressure switch or floats (minimum/maximum level motor 2)


PROTECTIONS
  • Maximum current protection for each motor with alarm













Mod.

Power

Current

Altezza, larghezza e profondità

Peso



V∼

KW

HP

AMPERE

A-H

L-W

P-D



EVO 2 400-7.5

400

5.5

7.5

2x(11÷16)

380

300

150

6.2





Salupo EVO 2

-

Manufacturer Instructions Technical Data Sheet
