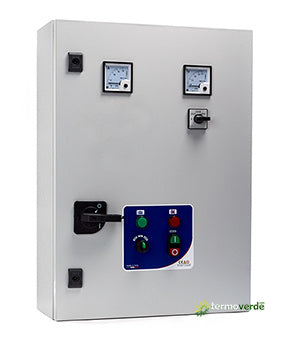

Salupo Impedance 1 400-70 Quadro elettrico 1 motore
Salupo Srl

Salupo Impedance 1 400-70 - 1 Pump Control Panel

In stock
No reviews
FREE SHIPPING
€2.680,83 EUR
Product details
  • Vendor Salupo Srl
  • SKU SQ701.11L - 26937 Salupo SQ701.11L Quadro IMPEDA

Share

Description

400V 90÷150A Lovato - Salupo Impedance 1 400-70 Stator impedance starting electrical panel 1 motor with voltmeter and ammeter - Maximum current protection with alarm

-


GENERAL CHARACTERISTICS
  • Operating voltage 400Vac ±10% 50/60Hz
  • Main switch with door lock
  • Selector for automatic operation -0- manual
  • Start-stop button for manual operation
  • Adjustable impedance timer
  • Run LED indicator light
  • Overload LED indicator light
  • Analogue voltmeter 72x72
  • Voltmetric switch
  • Analogue ammeter 72x72
  • Auxiliary circuit protection fuse
  • Transformer for auxiliary circuit
  • Motor protection fuse
  • No. 2 contactors
  • Three-phase impedance with thermostat
  • Internally resettable thermal relay
  • Connection terminal block
  • External metal container
  • Degree of protection IP55
  • Operating temperature -5/+40°C


INPUTS/OUTPUTS
  • No. 2 very low voltage inputs for pressure switch or floats (minimum/maximum level)


PROTECTIONS
  • Maximum current protection with alarm













Mod.

Power

Current

Altezza, larghezza e profondità

Peso



V∼

KW

HP

AMPERE

A-H

L-W

P-D



Impedance 1 400-70

400

51.5

70

90÷150

1000

800

370

92





Salupo Impedance 1

-

Manufacturer Instructions Technical Data Sheet
