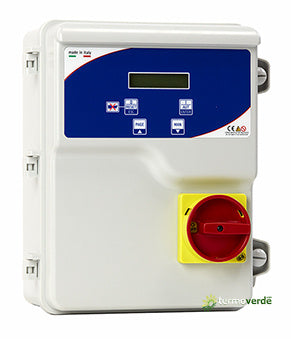

Salupo Multiplus 1 400-20 S - 1 Pump Control Panel

In stock
No reviews
FREE SHIPPING
€289,69 EUR
Product details
  • Vendor Salupo Srl
  • SKU SA687.04 - 26044 Salupo SA687.04 Quadro MULTIPLU

Share

Description

400V 16÷32A Siemens - Salupo Multiplus 1 400-20 Direct start electrical panel 1 motor for dry running control, clean and waste water with display - 4 different active protections

-


GENERAL CHARACTERISTICS
  • Operating voltage 230Vac +15/-20% 50/60Hz (SA684.xx)
  • Operating voltage 400Vac +15/-20% 50/60Hz (SA687.xx)
  • General disconnect switch with door lock
  • Automatic operation button
  • Manual operation button (stable/unstable)
  • Siren mute button
  • Auxiliary circuit protection fuse
  • Motor protection fuse
  • Contactor (SA687.xx)
  • External container in thermoplastic material
  • Cable glands
  • Degree of protection IP65
  • Operating temperature -5/+50°C
  • Relative humidity 60% at 50°C (non-condensing)


ADVANTAGES
  • Multilingual LCD display for viewing:

Mains voltage
Current
Cosφ
Hour meter
Level status
System pressure with pressure transducer
Tank level in meters with piezoresistive probe
All messages relating to engine operation
  • Engine data self-learning:

Cosφ
Maximum and minimum current
  • Adaptive well filling system
  • Adjustable maximum number of starts per hour
  • Adjustable engine start test (24-48-72-96h)
  • Dry running with level control, cosφ and minimum current
  • Adjustable probe sensitivity
  • Emptying function (1 input)/Filling (2 inputs)
  • Pressure loss control
  • Adjustable network return wait
  • Siren siren
  • Operation with pressure switches, floats, probes, pressure transducer and 4-20mA piezoresistive probe


INPUTS/OUTPUTS
  • No. 4 very low voltage inputs
  • 4-20mA input
  • Very low voltage input for engine klixon
  • No. 2 alarm outputs 12Vdc max 200mA for siren and LED flashing light
  • Alarm output max 5A NC-COM-NO (contact pure)


PROTECTIONS
  • Minimum and maximum current protection with alarm
  • Phase failure and sequence protection with automatic reset and alarm
  • Minimum and maximum voltage protection with automatic reset and alarm
  • Motor klixon protection with automatic reset and alarm













Mod.

Power

Current

Altezza, larghezza e profondità

Peso



V∼

KW

HP

AMPERE

A-H

L-W

P-D



Multiplus 1 400-20

400

7.5÷15

10÷20

16÷32

345

285

165

3.5





Salupo Multiplus 1

-

Manufacturer Instructions Technical Data Sheet
