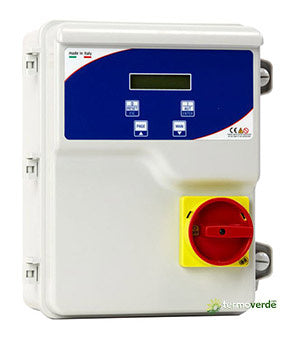

Salupo Rain Plus 2 400-7.5 S Quadro elettrico 2 motori
Salupo Srl

Salupo Rain Plus 2 400-7.5 S - 2 Pumps Control Panel

In stock
No reviews
FREE SHIPPING
€290,42 EUR
Product details
  • Vendor Salupo Srl
  • SKU SA695.01 - 26157 Salupo SA695.01 Quadro RAIN PLU

Share

Description

400V 2x(0.5÷12)A Siemens - Salupo Rain Plus 2 400-7.5 Direct start electrical panel 2 motors for first rain collection systems with display - 4 different active protections

-


GENERAL CHARACTERISTICS
  • Operating voltage 230Vac +15/-20% 50/60Hz (SA692.xx)
  • Operating voltage 400Vac +15/-20% 50/60Hz (SA695.xx)
  • General disconnect switch with door lock
  • Automatic operation button
  • Manual operation button (stable/unstable)
  • Auxiliary circuit protection fuse
  • Motor protection fuse
  • No. 2 contactors (SA695.xx)
  • External container in thermoplastic material
  • Cable glands
  • Degree of protection IP65
  • Operating temperature -5/+50°C
  • Relative humidity 60% at 50°C (non-condensing)


ADVANTAGES
  • Multilingual LCD display for viewing:

Mains voltage
Current for each motor
Hour meter for each motor
Level status
All messages relating to motor operation
  • Self-learning of maximum and minimum current for each motor
  • Dry running with level control and minimum current
  • Adjustable probe sensitivity
  • Adjustable motor start-up wait for decantation
  • Alternation of the 2 motors can be deactivated
  • 3s delay between the start of the 2 motors
  • Automatic switching in the event of motor failure
  • Adjustable mains return wait
  • Operation with floats and probes


INPUTS/OUTPUTS
  • No. 3 very low voltage inputs for floats or probes (minimum/maximum1/maximum2)
  • Very low voltage input for rain sensor
  • No. 2 very low voltage inputs for motor klixon
  • Output 12Vdc max 200mA for rain sensor
  • Alarm output 12Vdc max 200mA for LED flashing light
  • Alarm output max 5A NC-COM-NO (pure contact)


PROTECTIONS
  • Minimum and maximum current protection for each motor with alarm
  • Phase failure and sequence protection with automatic reset and alarm
  • Minimum and maximum voltage protection with automatic reset and alarm Klixon protection for each engine with automatic reset and alarm













Mod.

Power

Current

Altezza, larghezza e profondità

Peso



V∼

KW

HP

AMPERE

A-H

L-W

P-D



Rain Plus 2  400-7.5

400

0.37÷5.5

0.5÷7.5

2x(0.5÷12)

345

285

165

3.6





Salupo Rain Plus 2

-

Manufacturer Instructions Technical Data Sheet
