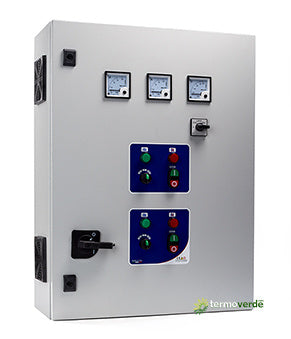

Salupo Soft Start 2 CL 400-5.5 S Quadro elettrico 2 motori
Salupo Srl

Salupo Soft Start 2 CL 400-5.5 S - 2 Pumps Control Panel

In stock
No reviews
FREE SHIPPING
€1.787,29 EUR
Product details
  • Vendor Salupo Srl
  • SKU SQ712.CL00 - 27007 Salupo Quadro SOFT START 2 CL

Share

Description

400V 2x(5÷12.5)A Siemens - Salupo Soft Start 2 CL 400-5.5 Soft start electrical panel 2 motors with voltmeter and ammeters - 2 different active protections

-


GENERAL CHARACTERISTICS
  • Operating voltage 400Vac ±10% 50/60Hz
  • Main switch with door lock
  • No. 2 selectors for automatic -0- manual operation
  • No. 2 start-stop buttons for manual operation
  • No. 2 LED run lights
  • No. 2 LED overload lights
  • Analogue voltmeter 72x72
  • Voltmetric switch
  • No. 2 analogue ammeters 72x72
  • Auxiliary circuit protection fuse
  • Transformer for auxiliary circuit
  • Protection fuse for each motor
  • No. 2 soft start with by-pass contacts
  • Forced ventilation complete with filters (from 25Hp onwards)
  • Fan thermostat
  • Connection terminal block
  • External metal container
  • Degree of protection IP55
  • Operating temperature -5/+40°C


ADVANTAGES
  • Acceleration and deceleration ramp adjustable by trimmer
  • Starting voltage adjustable by trimmer


INPUTS/OUTPUTS
  • No. 2 very low voltage inputs for pressure switch or floats (minimum/maximum level motor 1)
  • No. 2 very low voltage inputs for pressure switch or floats (minimum/maximum level motor 2)


PROTECTIONS
  • Maximum current protection for each motor with phase imbalance and alarm
  • Protection on phase drop and missing load











Mod.

Power

Current

Altezza, larghezza e profondità

Peso



V∼

KW

HP

AMPERE

A-H

L-W

P-D



Soft Start 2 400-5.5

400

2.2÷4

3÷5.5

2x(5÷12.5)

700

500

290

27





Salupo Soft Start 2

-

Manufacturer Technical Data Sheet
