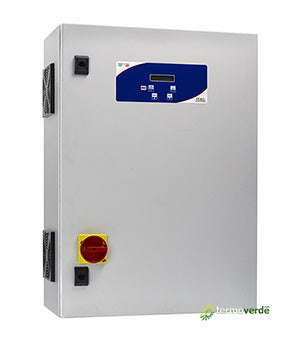

Salupo Soft Start Plus 3 CLC 400-25 S Quadro elettrico 3 motori
Salupo Srl

Salupo Soft Start Plus 3 CLC 400-25 S - 3 Pumps Control Panel

In stock
No reviews
FREE SHIPPING
€4.371,70 EUR
Product details
  • Vendor Salupo Srl
  • SKU SQ696.CL04/SS - 26310 Salupo Quadro SOFT START P

Share

Description

400V 3x(22.5÷45)A Siemens - Salupo Soft Start Plus 3 CLC 400-25 Soft start electrical panel 3 motors for pressure booster, clean and waste water with display - 4 different active protections

-


GENERAL CHARACTERISTICS
  • Operating voltage 400Vac ±10% 50/60Hz
  • General disconnect switch with door lock
  • Automatic operation button
  • Manual operation button (stable/unstable)
  • Siren silence button
  • Auxiliary circuit protection fuse
  • Protection fuse for each motor
  • No. 3 soft start with by-pass contacts
  • Forced ventilation complete with filters (from 25Hp onwards)
  • Fan thermostat
  • Connection terminal block
  • External metal container
  • Degree of protection IP55
  • Operating temperature -5/+40°C


ADVANTAGES
  • Multilingual LCD display for viewing:

Mains voltage
Current for each motor
Hour meter for each motor
Pressure switch status
Level status
System pressure with pressure transducer
Tank level in meters with piezoresistive probe
All messages relating to motor operation
  • Self-learning maximum and minimum current for each motor
  • Dry running with level control and minimum current
  • Alternation of the 3 motors can be deactivated
  • 3s delay between the start of the 3 motors
  • Automatic switching in the event of motor failure
  • Pressure loss control
  • Adjustable mains return wait
  • Siren siren
  • Acceleration and deceleration ramp adjustable by trimmer
  • Starting voltage adjustable by trimmer
  • Operation with pressure switches, floats, probes, pressure transducer and 4-20mA piezoresistive probe


INPUTS/OUTPUTS
  • No. 5 very low voltage inputs
  • 4-20mA input
  • No. 2 very low voltage inputs for motor klixon
  • No. 2 alarm outputs 12Vdc max 200mA for siren and LED flashing light
  • Alarm output max 5A NC-COM-NO (pure contact)


PROTECTIONS
  • Minimum and maximum current protection for each motor with alarm
  • Phase failure and sequence protection with automatic reset and alarm
  • Minimum and maximum voltage protection with automatic reset and alarm
  • Klixon protection for each engine with automatic reset and alarm













Mod.

Power

Current



Peso



V∼

KW

HP

AMPERE

A-H

L-W

P-D



Soft Start Plus 3 400-25

400

18.5

25

3x(22.5÷45)

800

600

290

34





Salupo Soft Start Plus 3

-

Manufacturer Instructions Technical Data Sheet
