Salupo Star Delta 1 400-150 Quadro elettrico 1 motore
Salupo Srl

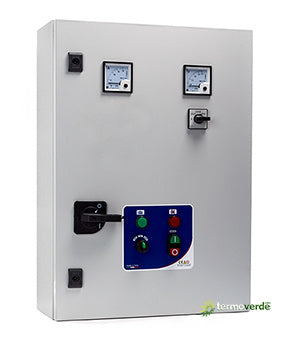

Salupo Star Delta 1 400-150 - 1 Pump Control Panel

In stock
No reviews
FREE SHIPPING
€3.129,53 EUR
Product details
  • Vendor Salupo Srl
  • SKU SQ700.14L - 26847 Salupo SQ700.14L Quadro STAR D

Share

Description

400V 242A Lovato - Salupo Star Delta 1 400-150 Star delta electrical panel 1 motor with voltmeter and ammeter - Maximum current protection with alarm

-


GENERAL CHARACTERISTICS
  • Operating voltage 400Vac ±10% 50/60Hz
  • Main switch with door lock
  • Selector for automatic operation -0- manual
  • Start-stop button for manual operation
  • Adjustable star-delta timer
  • Run LED indicator light
  • Overload LED indicator light
  • Analogue voltmeter 72x72
  • Voltmetric switch
  • Analogue ammeter 72x72
  • Auxiliary circuit protection fuse
  • Transformer for auxiliary circuit
  • Motor protection fuse
  • No. 3 contactors
  • Internally resettable thermal relay
  • Connection terminal block
  • External metal container
  • Degree of protection IP55
  • Operating temperature -5/+40°C


INPUTS/OUTPUTS
  • No. 2 Very low voltage inputs for pressure switch or floats
  • (minimum/maximum level)

PROTECTIONS
  • Maximum current protection with alarm













Mod.

Power

Current

Altezza, larghezza e profondità

Peso



V∼

KW

HP

AMPERE

A-H

L-W

P-D



Star Delta 1 400-150

400

110

150

242

1200

800

370

86





Salupo Star Delta 1

-

Manufacturer Instructions Technical Data Sheet
