Salupo Star Delta 2 400-60 S Quadro elettrico 2 motori
Salupo Srl

Salupo Star Delta 2 400-60 S - 2 Pumps Control Panel

In stock
No reviews
FREE SHIPPING
€2.572,38 EUR
Product details
  • Vendor Salupo Srl
  • SKU SQ710.08 - 26895 Salupo SQ710.08 Quadro STAR DEL

Share

Description

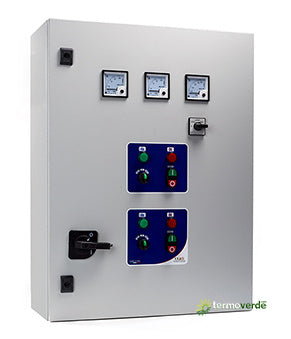

400V 2x(100)A Siemens - Salupo Star Delta 2 400-60 Star delta electrical panel 2 motors with voltmeter and ammeters - Maximum current protection for each motor with alarm

-


GENERAL CHARACTERISTICS
  • Operating voltage 400Vac ±10% 50/60Hz
  • Main switch with door lock
  • No. 2 selectors for automatic -0- manual operation
  • No. 2 start-stop buttons for manual operation
  • No. 2 adjustable star-delta timers
  • No. 2 LED run lights
  • No. 2 LED overload lights
  • Analogue voltmeter 72x72
  • Voltmetric switch
  • No. 2 analogue ammeters 72x72
  • Auxiliary circuit protection fuse
  • Transformer for auxiliary circuit
  • Protection fuse for each motor
  • No. 6 contactors
  • No. 2 internally resettable thermal relays
  • Connection terminal block
  • External metal container
  • Degree of protection IP55
  • Operating temperature -5/+40°C


INPUTS/OUTPUTS
  • No. 2 very low voltage inputs for pressure switch or floats (minimum/maximum level motor 1)
  • No. 2 very low voltage inputs for pressure switch or floats (minimum/maximum level motor 2)


PROTECTIONS
  • Maximum current protection for each motor with alarm











Mod.

Power

Current

Altezza, larghezza e profondità

Peso



V∼

KW

HP

AMPERE

A-H

L-W

P-D



Star Delta 2 400-60

400

45

60

2x(100)

800

600

290

45





Salupo Star Delta 2

-

Manufacturer Technical Data Sheet
