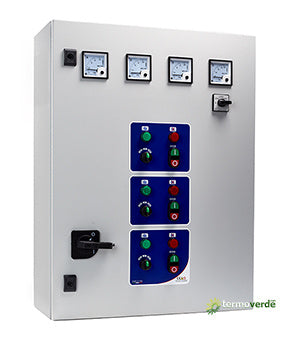

Salupo Star Delta 3 400-35 Quadro elettrico 3 motori
Salupo Srl

Salupo Star Delta 3 400-35 - 3 Pumps Control Panel

In stock
No reviews
FREE SHIPPING
€2.707,14 EUR
Product details
  • Vendor Salupo Srl
  • SKU SQ720.05L - 26908 Salupo SQ720.05L Quadro STAR D

Share

Description

400V 3x(58)A Lovato - Salupo Star Delta 3 400-35 Star delta electrical panel 3 motors with voltmeter and ammeters - Maximum current protection for each motor with alarm

-


GENERAL CHARACTERISTICS
  • Operating voltage 400Vac ±10% 50/60Hz
  • Main switch with door lock
  • No. 3 selectors for automatic -0- manual operation
  • No. 3 start-stop buttons for manual operation
  • No. 3 adjustable star-delta timers
  • No. 3 LED run lights
  • No. 3 LED overload lights
  • Analogue voltmeter 72x72
  • Voltmetric switch
  • No. 3 analogue ammeters 72x72
  • Auxiliary circuit protection fuse
  • Transformer for auxiliary circuit
  • Protection fuse for each motor
  • No. 9 contactors
  • No. 3 internally resettable thermal relays
  • Connection terminal block
  • External metal container
  • Degree of protection IP55
  • Operating temperature -5/+40°C


INPUTS/OUTPUTS
  • No. 2 very low voltage inputs for pressure switch or floats (minimum/maximum level motor 1)
  • No. 2 very low voltage inputs for pressure switch or floats (minimum/maximum level motor 2)
  • No. 2 very low voltage inputs for pressure switch or floats (minimum/maximum level motor 3)


PROTECTIONS
  • Maximum current protection for each motor with alarm













Mod.

Power

Current

Altezza, larghezza e profondità

Peso



V∼

KW

HP

AMPERE

A-H

L-W

P-D



Star Delta 3 400-35

400

22÷26

30÷35

3x(58)

1000

800

370

65





Salupo Star Delta 3

-

Manufacturer Instructions Technical Data Sheet
