Salupo Top GSM 4/1 Controllo remoto quadri elettrici
Salupo Srl

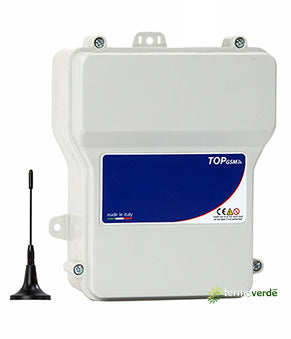

Salupo Top GSM 4/1 Electrical panels remote control

Out of stock
No reviews
FREE SHIPPING
€155,89 EUR
Product details
  • Vendor Salupo Srl
  • SKU SC100.19/1 - 26004 Salupo SC100.19/1 Dispositivo

Share

Description

230Vac - Salupo Top GSM 4/1 Remote control device (telecontrol) for electrical panels - 1 output

-


GENERAL CHARACTERISTICS
  • Operating voltage 12Vdc/230Vac
  • Quad-band GSM module
  • No. 9 telephone numbers for input status communication
  • No. 9 telephone numbers for network failure communication (only with buffer battery)
  • ECHO function for checking SIM expiry and remaining credit
  • Buffer battery (SC100.19/P1/xxx)
  • GSM/GPRS antenna with magnetic base with 3m cable
  • Connection terminal block
  • External container in thermoplastic material
  • Cable glands
  • Degree of protection IP65
  • Operating temperature -5/+40°C


INPUTS/OUTPUTS
  • No. 4 very low voltage inputs completely programmable
  • No. 2 inputs for temperature probe
  • No. 2 outputs max 5A NC-COM-NO (pure contact)
  • No. 2 outputs max 5A COM-NO (pure contact)













Mod.

Inputs

Outputs



Peso




A-H

L-W

P-D



Top GSM 4/1 230 Vac





4

 1
 140

80

0.6

0.1



Salupo Top GSM

-

Manufacturer Instructions Technical Data Sheet
