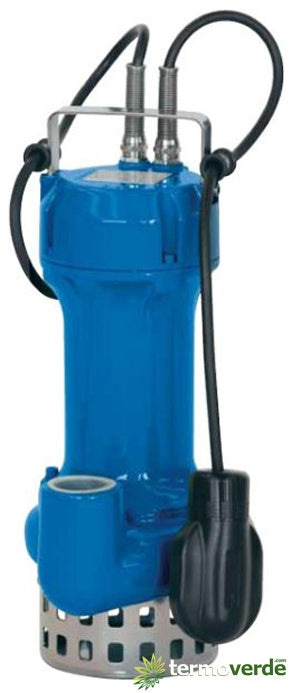

Speroni ECM 75-DS Drainage pump

Submersible electric pump for drainage - Speroni ECM 75-DS - 230V 0.75HP - Flow rate: l/m 350 - Head max.: H(m) 10

-

APPLICATIONS
Electric pumps for drainage with impeller immersed open by leveling with filtering grid. Suitable for lifting clear water with small bodies in suspension, for rainwater and infiltration and for emptying rainwater or collection water.

LIMITS OF USE
- Liquid temperature up to 35 ° C
- maximum immersion depth 20 meters.
   (with cable of suitable length)
- Solid passage Ø 10 mm
- Min. Level of suction. 100 mm
- Continuous service

MOTOR
- Class F insulation
- IP 68 protection
- Thermal protector (single phase only)

MATERIALS
- Motor body: Cast iron
- Pump body: Cast iron
- Impeller: Cast iron
- Motor shaft: AISI 304 stainless steel
- Grill: AISI 304 stainless steel
- Mechanical seal with oil chamber: Silicon / Silicon / NBR

-

Manufacturer Technical Data Sheet
