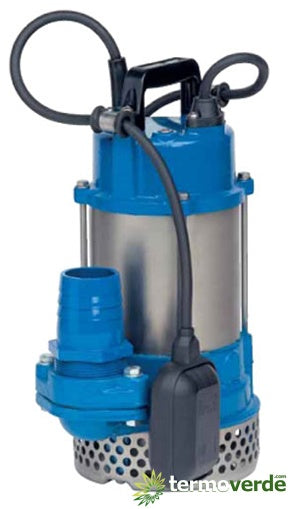

Speroni SDH 1000 Drainage pump

Stainless steel submersible electric pump for drainage - Speroni SDH 1000 - 230V 1.0HP - Flow rate: l/m 350 - Head max.: H(m) 15

-

APPLICATIONS
Electric pumps for drainage with impeller immersed open by leveling with filtering grid. Suitable for lifting clear water with small bodies in suspension, for rainwater and infiltration and for emptying rainwater or collection water.

LIMITS OF USE
- Liquid temperature up to 35 ° C
- Maximum immersion depth 20 meters.
   (with cable of suitable length)
- Solid passage Ø 7,5 mm
- Min. Level suction 88 mm
- Continuous service

MOTOR
- Insulation Class B
- IP 68 protection
- Thermal protector

MATERIALS
- Motor cover: Cast iron
- Pump body: Cast iron
- Impeller: Noryl
- Shaft: Stainless InoxAISI 304
- Grill: AISI 304 stainless steel
- Mechanical seal: Ceramic / Graphite / NBR

-
