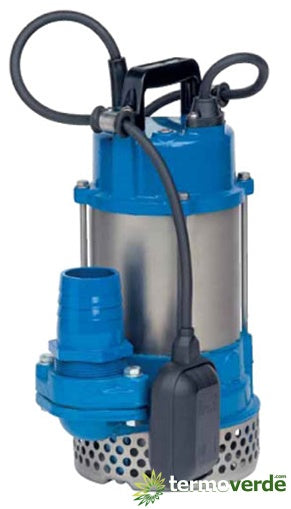

Speroni SDH 500 Drainage pump

Stainless steel submersible electric pump for drainage - Speroni SDH 500 - 230V 0.5HP - Flow rate: l/m 200 - Head max.: H(m) 11.5

-

APPLICATIONS
Electric pumps for drainage with impeller immersed open by leveling with filtering grid. Suitable for lifting clear water with small bodies in suspension, for rainwater and infiltration and for emptying rainwater or collection water.

LIMITS OF USE
- Liquid temperature up to 35 ° C
- Maximum immersion depth 20 meters.
   (with cable of suitable length)
- Solid passage Ø 7,5 mm
- Min. Level suction 88 mm
- Continuous service

MOTOR
- Class B insulation
- IP 68 protection
- Thermal protector

MATERIALS
- Motor cover: Cast iron
- Pump body: Cast iron
- Impeller: Noryl
- Motor shaft: AISI 304 stainless steel
- Grill: AISI 304 stainless steel
- Mechanical seal: Ceramic / Graphite / NBR

-
