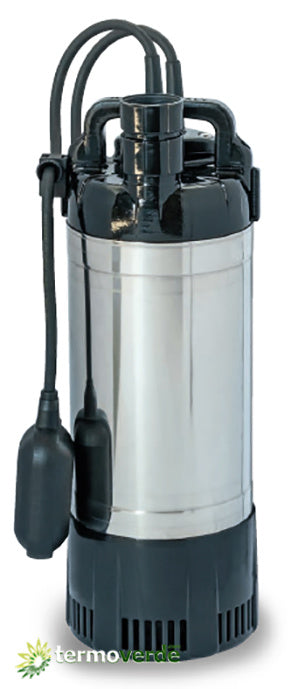

Speroni SMX 1104 Submersible pump

Multistage submersible electric pump for clean water drainage - Speroni SMX 1104 - 220V 1100W - Flow rate: l/m 100 - Head max.: H(m) 45

-

APPLICATIONS
Multistage submersible electric pump for the drainage of clear water. It is particularly suitable for irrigation systems, for the supply of drinking water, for washing and for all those cases in which a pressure increase is required.

LIMITS OF USE
- Liquid temperature up to 35 ° C (for domestic use according to EN 60335-2-41)
- Max. liquid: 35 ° C (for other uses)
- Maximum immersion depth 10 meters.
- Solid passage Ø 3 mm
- Min level suction 60 mm

MOTOR
- Single phase 230V-50Hz
- Permanent capacitor inserted
- Class F insulation
- IP 68 protection

MATERIALS
- Polypropylene handle
- Motor body AISI 304 stainless steel
- Motor support AISI 304 stainless steel
- Pump body AISI 304 stainless steel
- Noryl impellers
- Polypropylene suction grille
- Motor shaft AISI 304 stainless steel
- Double mechanical seal in oil chamber Ceramic / Graphite / NBR Ceramic / Graphite / NBR

-

Manufacturer Technical Data Sheet
